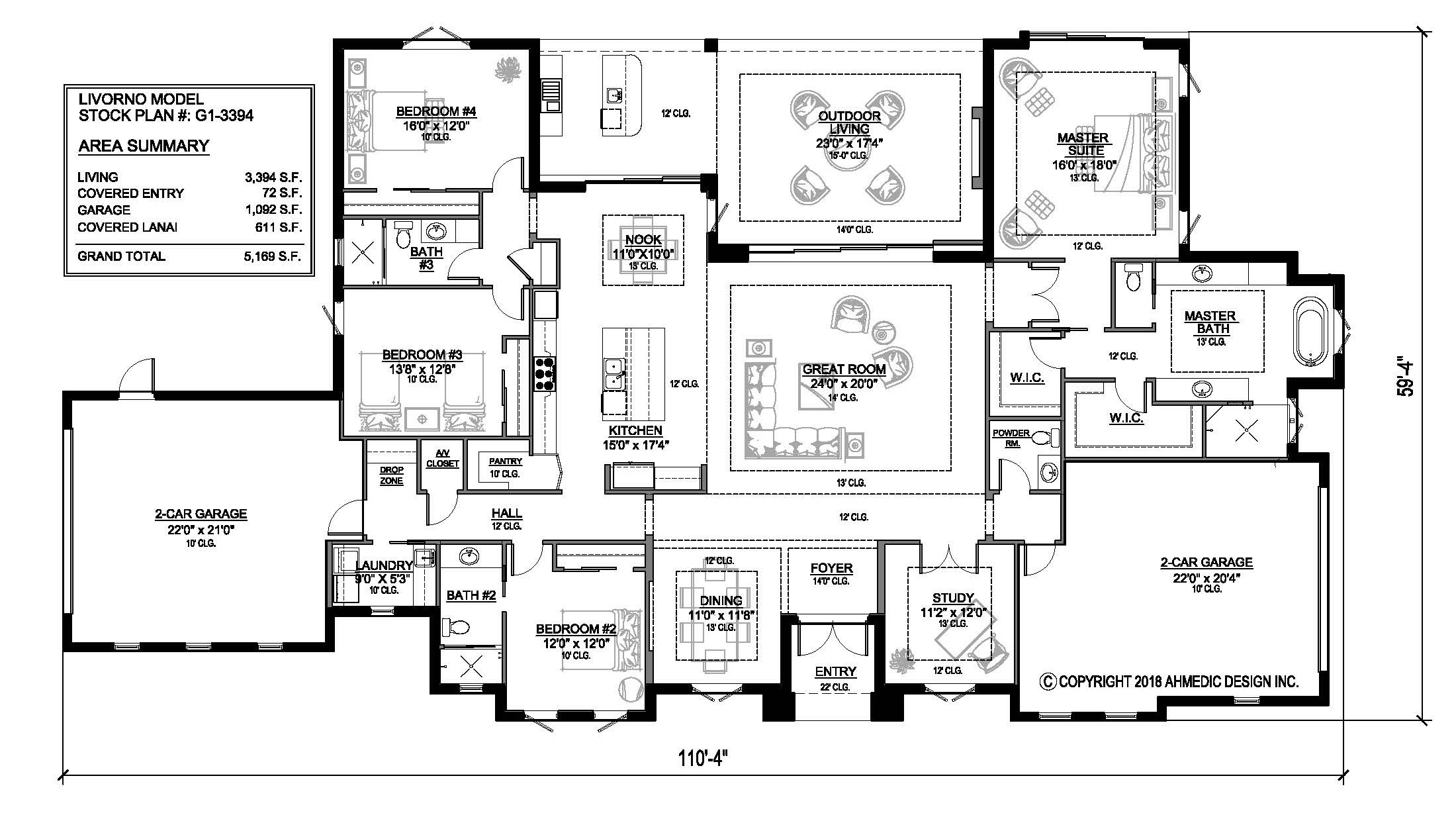

Floor Plan

View Large Image

Plan #	G1-3394
Plan Name:	Livorno
Style of House:	Modern
Bedrooms	4
Baths	3
Half Baths	1
Number of Car Garage	4
Number of Floors	1
Width	110’4”
Depth	59’4”

Materials

Foundation Type	Slab
Exterior Finish	Stucco
Exterior Wall 1st Floor	CMU
Roofing Material	FLAT ROOF TILES
Roof Pitch	6:12
Roof Framing	Mfg Trusses

Square Footage

Total Living Area	3,394 SQ FT
Main Floor	3,394 SQ FT
Entry	72 SQ FT
Garage	1,092 SQ FT
Lanai	611 SQ FT
Total Under Roof	5,169 SQ FT

Bedrooms

Master Suite Main Floor
Split Bedrooms
Walk-in Closet

Garage

Over-Sized Garage
Side-Entry Garage

Interior

Coffer/Vaulted Ceilings
Dining Room
Great Room
Laundry Main Floor
Open Floor Plan
Study/Library

Exterior

Covered entry/porch
Outdoor Kitchen
Rear Covered Lanai
Rear Screened Lanai
Suited For Front/Rear Views

General

Handicapped Adaptable

Kitchen

Kitchen Island
Nook/Breakfast Area
Peninsula/Island Eating Bar
Walk-In Pantry

Ceiling

Room	Ceiling Heights	Ceiling Type
Master Bedroom	Coffered	12’, 13’
Master Bath	Flat	12’, 13’
Great Room	Coffered	13’, 14’
Dining Room	Coffered	12’, 13’
Kitchen	Flat	12’
Entry	Flat	22’0”
Foyer	Flat	14’
Study	Coffered	12’, 13’
Bedroom 2	Flat	10’
Bedroom 3	Flat	10’
Bedroom 4	Flat	10’
Baths	Flat	10’
Lanai	Coffered	12’, 14’, 15’
Laundry	Flat	10’
Garage	Flat	10’

Extra Info

Ahmedic Design, Inc. hereby reserves its common law copyright and all other property rights in these plans, ideas, and designs. These plans and designs are not to be reproduced, copied, or changed in any form or manner. These plans and designs are not to be assigned to any third party without first obtaining the express written permission of Ahmedic Design, Inc.

This plan will still need to be engineered by the local engineering company and truss drawings done as well for most locations.
