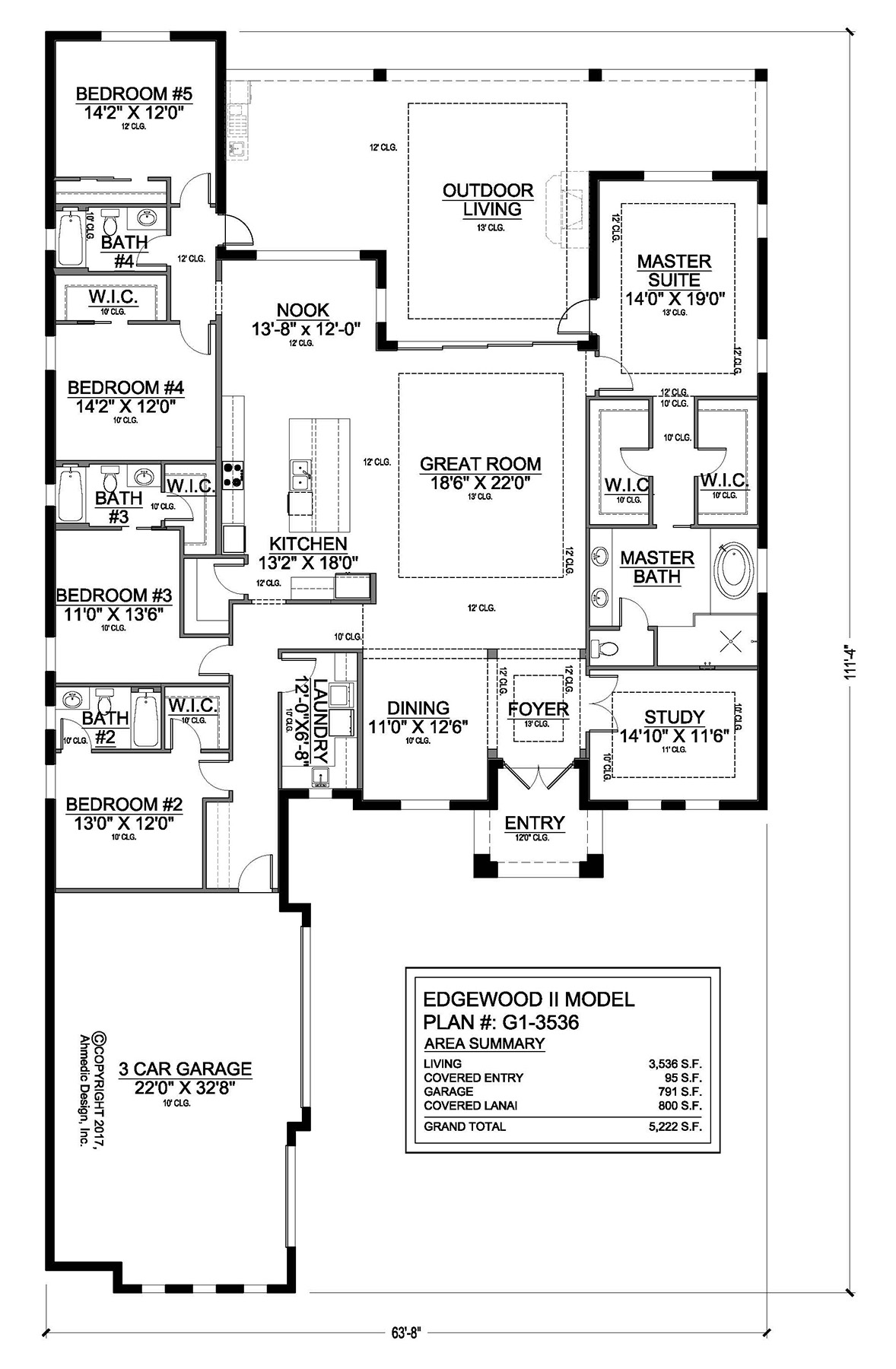

Floor Plan

View Large Image

HOUSING INFO:
Plan #	G1-3536
Bedrooms	5
Baths	4
Half Baths	0
Number of Car Garage	3
Number of Floors	1
Width	63’8”
Depth	111’4”
Building Height	27’6”

Materials

Foundation Type	Slab
Exterior Finish	Stucco
Exterior Wall 1st Floor	CMU
Roofing Material	Roof tiles
Roof Pitch	6:12
Roof Framing	Mfg Trusses

Square Footage

Total Living Area	3,536 SQ FT
Main Floor	3,536 SQ FT
Entry	95 SQ FT
Garage	791 SQ FT
Lanai	800 SQ FT
Total Under Roof	5,222 SQ FT

Bedrooms

Master Suite Main Floor
Split Bedrooms
Walk-in Closet

Garage

Side-Entry Garage

Interior

Coffer/Vaulted Ceilings
Dining Room
Great Room
Laundry Main Floor
Open Floor Plan
Study/Library

Exterior

Covered entry/porch
Outdoor Kitchen
Rear Covered Lanai
Rear Screened Lanai
Suited For Front/Rear Views

General

Handicapped Adaptable

Kitchen

Kitchen Island
Nook/Breakfast Area
Peninsula/Island Eating Bar
Walk-In Pantry

Ceiling

Room	Ceiling Type	Ceiling Heights
Master Bedroom	Coffered	12’, 13’
Master Bath	Flat	10’
Great Room	Coffered	12’, 13’
Dining Room	Flat	10’
Kitchen	Flat	12’
Dinette	Flat	12’
Entry	Flat	12’0”
Foyer	Coffered	12’, 13’
Study	Coffered	10’, 11’
Bedroom 2	Flat	10’
Bedroom 3	Flat	10’
Bedroom 4	Flat	10’
Bedroom 5	Flat	12’
Baths	Flat	10’
Lanai	Coffered	12’, 13’
Laundry	Flat	10’
Garage	Flat	10’

Extra Info

Ahmedic Design, Inc. hereby reserves its common law copyright and all other property rights in these plans, ideas, and designs. These plans and designs are not to be reproduced, copied, or changed in any form or manner. These plans and designs are not to be assigned to any third party without first obtaining the express written permission of Ahmedic Design, Inc.

This plan will still need to be engineered by the local engineering company and truss drawings done as well for most locations.

COUNTY WHERE BUILDING RESTRICTIONS APPLY: Lee, Collier and Sarasota County, Florida

Serving All of South Florida

(239) 777-0616 (Bonita Springs)

Let's Get Started...

Edgewood II
